NSTL
270 g
peak acceleration, half-sine, 3.3 ms
Naval shock qualification

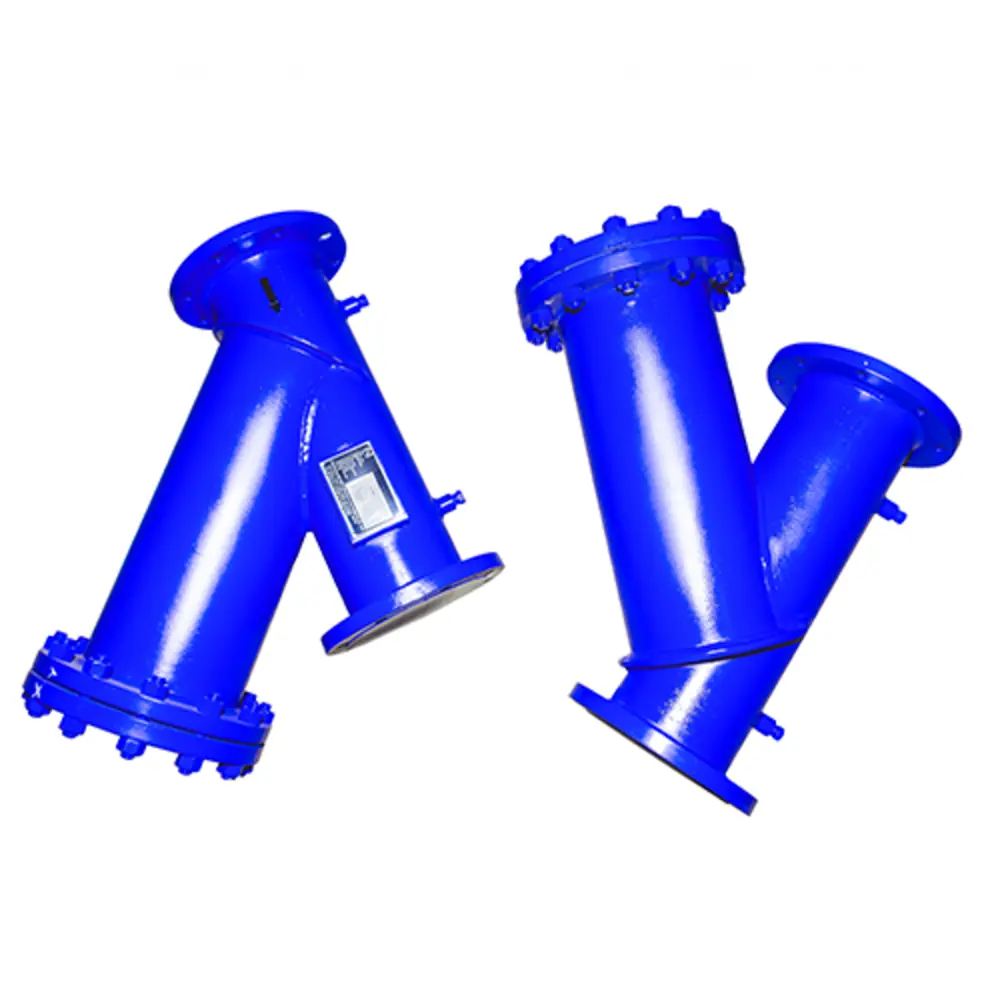

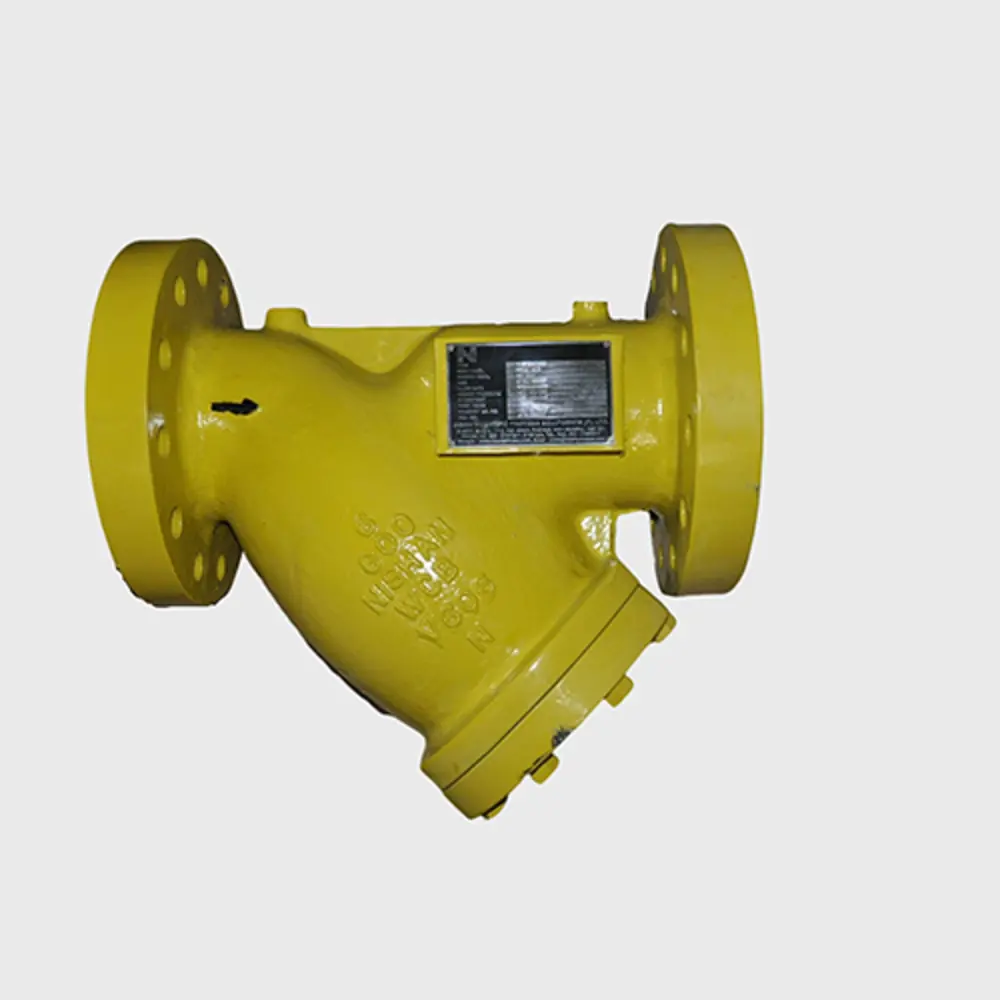

Certificate (PDF)Y-strainers remove small volumes of solids from liquid, gas or steam applications and prevent foreign matter from entering pipelines. An optional blow off connection permits screen cleaning without removing the cover, and customization is available.
Design features
- Available with RF and FF flange.
- Custom fabrication can be done for very high pressure.
- Can be installed in horizontal or vertical pipelines.
- Drain connections are standard and are furnished with plug.
- Perforated screen with 40 Mesh linings are standard.
- Other linings shall be done on request.
- Drain can be provided with valve on request.
- Tomeet cryogenic application with suitable MOC
- Tomeet high temperature with suitable gasket and MOC.
- Free straining are 4 times of pipe cross section are standard.
- Screens with higher free straining area on request.
- Low pressure drop streamlined design
- Large strainer screens
- Compact end to end dimension
- Fabricated Construction
Loading model
Drag to orbit
Augmented reality
Stand it on your floor
Open this on a phone and tap the button. The part appears at true size in the room in front of you. Tap a label to read the parts. Nothing to install.
Loading the model
Move the phone slowly until the floor is found
This phone could not start augmented reality
Class 150
Tap a label on the model. The screen is inside the leg; turn on See inside to look at it.
- 1 Process in Process flow enters the inlet. 10 inch (250 NB), Class 150.
- 2 Solids held Perforated screen with 40 Mesh linings are standard.
- 3 Clean out Clean flow leaves the outlet. 10 inch (250 NB), Class 150.
- 4 Blow-off Drain connections are standard and are furnished with plug.
True size, 691 x 583 x 405 mm. Representative geometry, not a CAD drawing.
On iPhone, open this page in Safari for augmented reality. It does not work inside the LinkedIn or WhatsApp browser.
Technical specification
Build and limits
Taken from our published product data. Confirm against your line specification before ordering.
- Housing material
- Carbon steel, Stainless steel in various grades, - Other materials and coatings available on request
- Filter Element
- Carbon steel, Stainless steel in various grades - Other materials available on request.
- End connection
- Flanged (As per requested Table.), Threaded (NPT or BSP)
- Sizes
- Sizes are available from 1/2" Line size to 24" Line size. Other/Higher sizes available on request
- Filtration rating
- Filtration rating available from 1 micron to 1000 microns
- Pressure rating
- Up to 1000 PSI. High-pressure ratings available on request
- Class range
- 150# to 1500#
- Materials
- Ductile Iron; Bronze; Carbon Steel; Low Temp Steel; Chrome Molly; Stainless Steel; Other Materials Upon Request
- Product end connections
- Flat Faced; Raised Face; RTJ Flanged; Buttweld; Threaded (NPT); Socketweld Sweat
- Product ratings
- ASME Class 150; ASME Class 300; ASME Class 600; ASME Class 900; ASME Class 1500; ASME Class 500
- Fabricated sizes
- Fabricated - Custom sizes to meet any requirements
- Applications
- Pump protection; Flow meter protection; Protection of steam traps; Valve and regulator protection; Protection of heat exchanger and refrigerating set; Instrumentation and ancillary pi ping item protection
Where it is used
Applications
Process IndustryMetals and MiningPower IndustryWater and WasteChemical IndustryPulp and PaperOil & Gas
Independent testing
Tested by government laboratories
These reports cover our strainers. They were produced by outside laboratories, not by us.
CWPRS
0.0183
kg/cm² head loss at 493 m³/hr, clean
Pressure-drop test, gas-turbine plant duty
Certificate (PDF)Same family
Related products
Ask for a quote
Send your line size, flow rate, fluid and temperature. We will size it and send a price.
