Nuclear
2
Blanket pin magazines
Nuclear Fuel Complex, Hyderabad, Department of Atomic Energy
Storage of zirconium fuels
Proof
Named jobs, then measured numbers
Three critical supply references from our company profile, then two laboratory reports produced by independent Government of India labs. Certificates are downloadable in full.
Critical supply references
Nuclear and naval
Wording taken from our company profile. These are supply records, not laboratory certificates.
Nuclear
8
Pipe flower assemblies
Kakrapar Atomic Power Project, NPCIL
Nuclear waste storage
Naval
5 types
Strainers for P15 and P17
Mazagon Dock and Garden Reach Shipbuilders
P15 and P17 naval projects

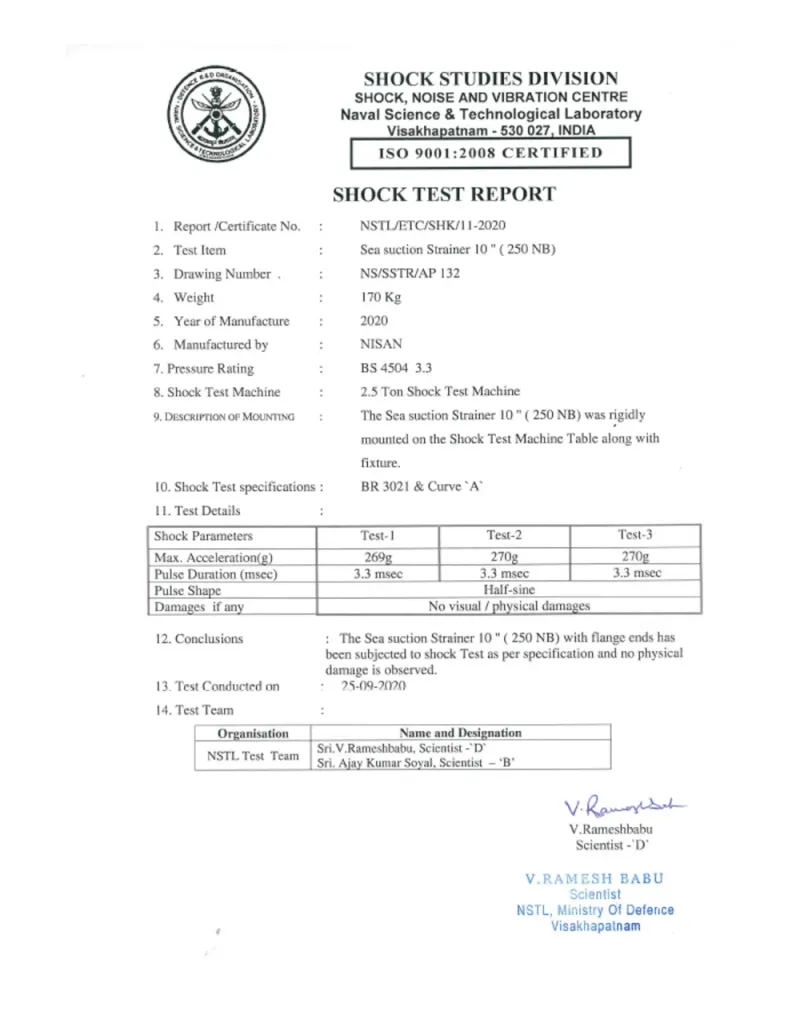

01, NSTL
Naval shock qualification
NSTL, Naval Science & Technological Laboratory, Ministry of Defence, Visakhapatnam
| Test 1 max acceleration | 269 g |
|---|---|
| Test 2 max acceleration | 270 g |
| Test 3 max acceleration | 270 g |
| Pulse duration | 3.3 ms, half-sine |
| Damage observed | None |

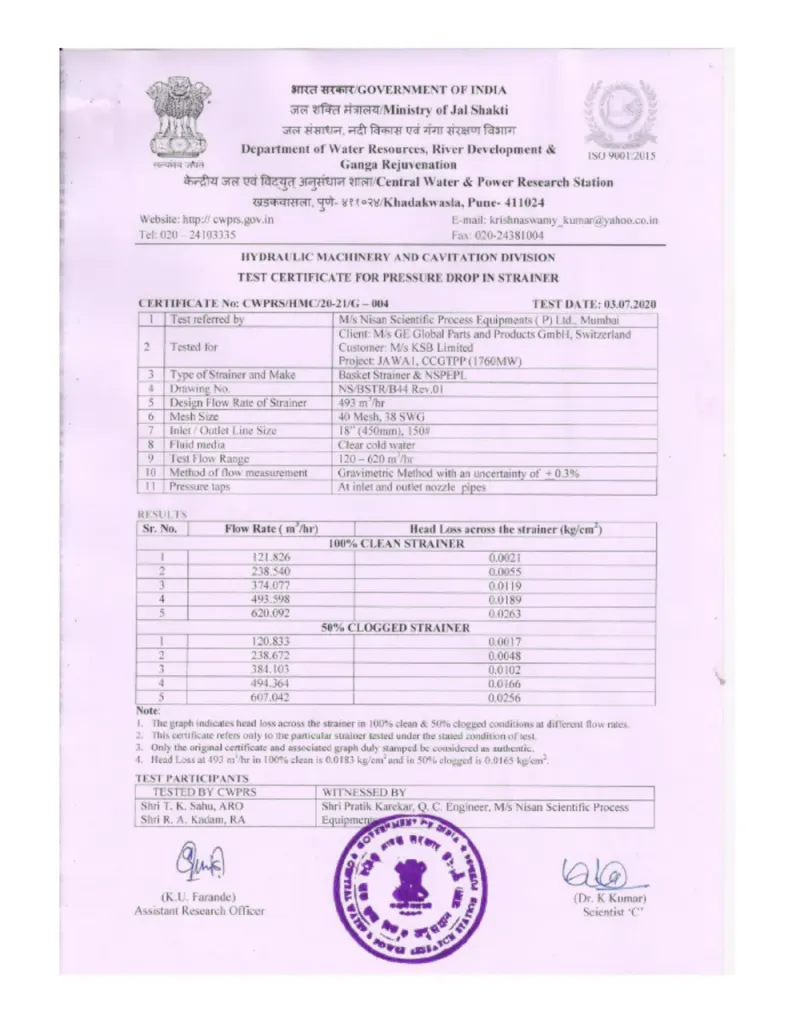

02, CWPRS
Pressure-drop test, gas-turbine plant duty
CWPRS, Central Water & Power Research Station, Ministry of Jal Shakti, Pune
| Design flow rate | 493 m³/hr |
|---|---|
| Head loss at 493 m³/hr, clean | 0.0183 kg/cm² |
| Head loss at 493 m³/hr, 50% clogged | 0.0165 kg/cm² |
| Test flow range | 120 to 620 m³/hr |
| Flow measurement uncertainty | ± 0.3%, gravimetric |

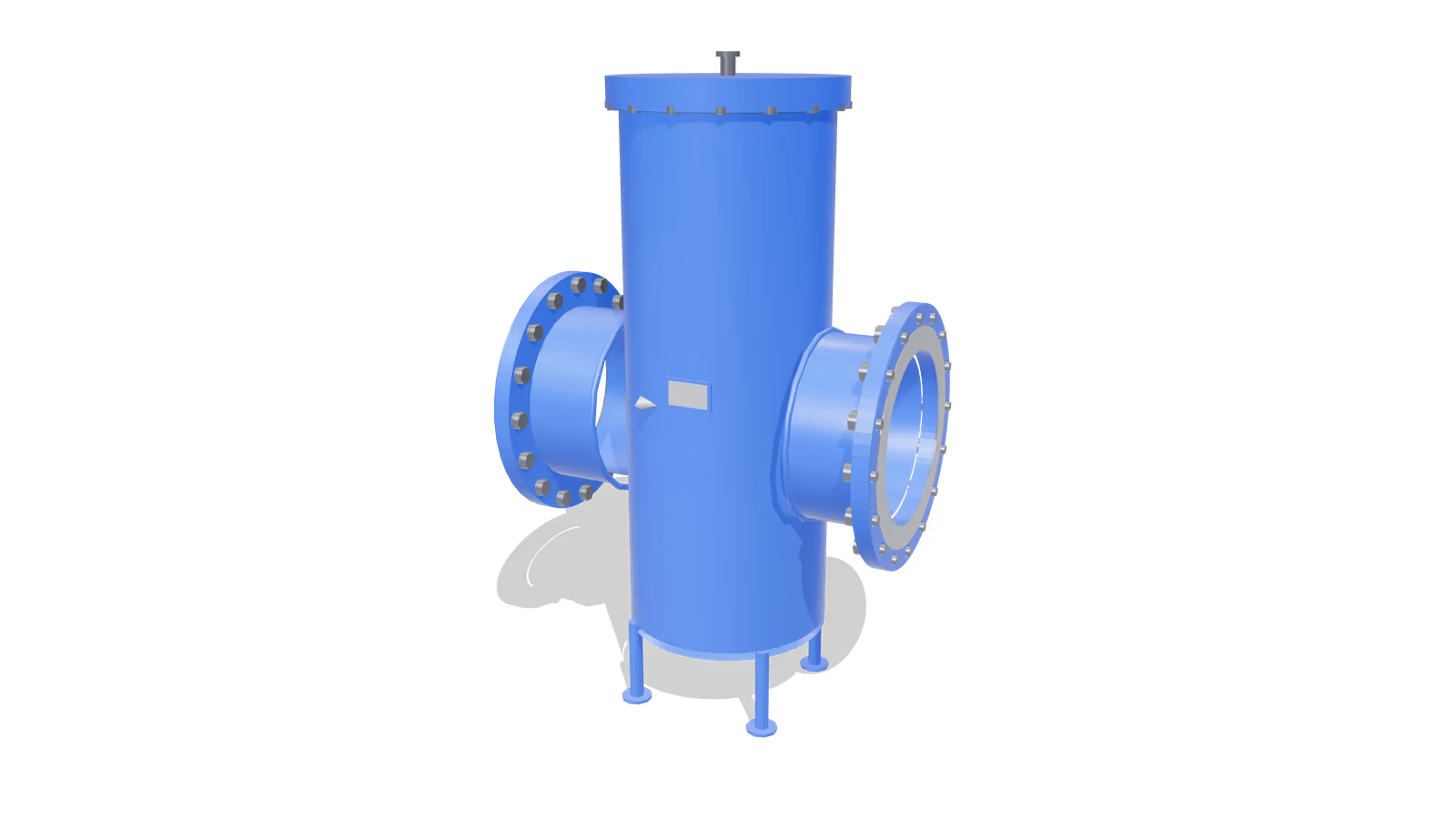

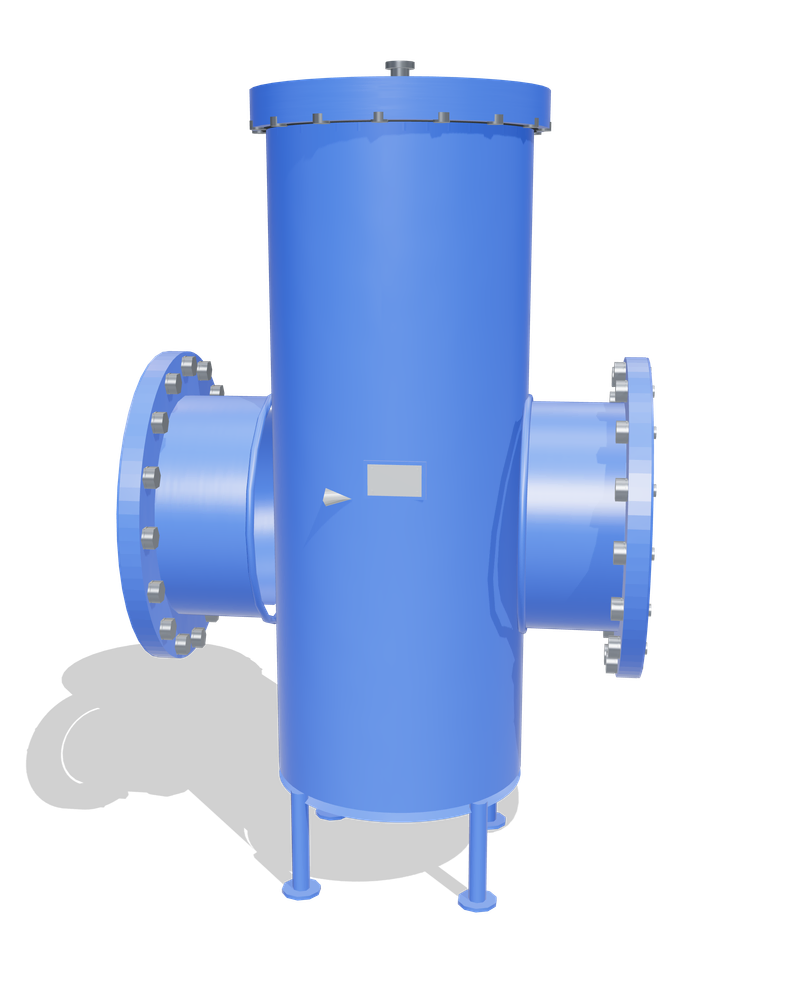

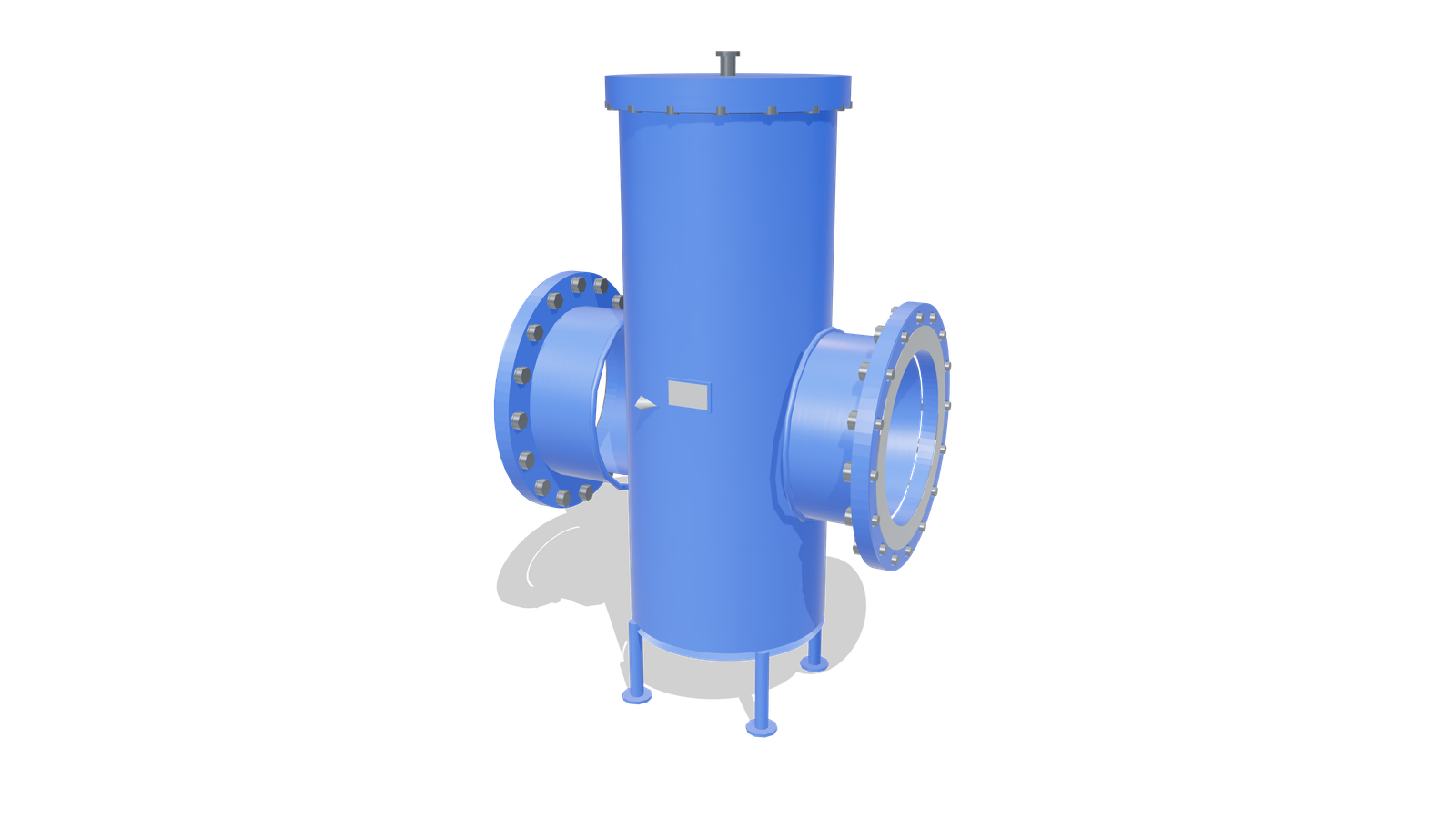

The unit type CWPRS tested, 18 inch, 40 mesh
Loading model
Drag to orbit
Measured head loss, CWPRS/HMC/20-21/G-004
100% clean 50% clogged Five measured points per curve. Gravimetric flow, ±0.3%.
