NSTL
270 g
peak acceleration, half-sine, 3.3 ms
Naval shock qualification

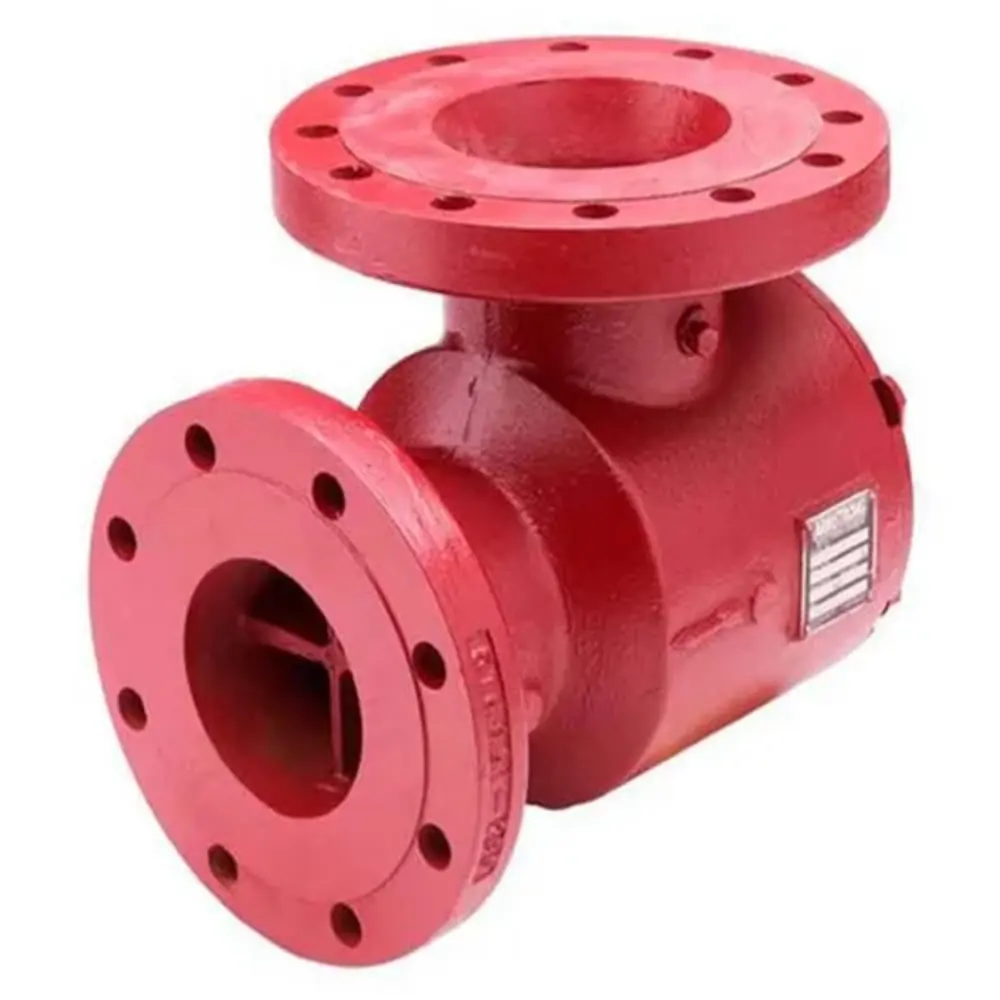

Certificate (PDF)A suction diffuser combines an elbow and built-in strainer with flow straightening at the pump suction inlet. It simplifies installation, reduces space and fitting requirements, and eliminates the need for an equivalent length of ten pipe diameters of straight run on the pump suction side.
Design features
- Available with RF and FF flange
- Full Length Straightening Vane Assembly ensures uniform flow tothe suction inlet of the pump
- Metering Port allows for the monitoring of system conditions
- Disposable Fine Mesh Start-Up Strainer promotes cleaner more trouble free system
- Removable Cover Plate and reusable O Ring allows for easy access and maintenance of Permanent Strainer
- Blow Down port allows for routine maintenance and removal of sediment and debris
- Fabricated design.Can also be Ductile Iron Body on all units
- Optional Magnetic Insert totrap small metallic particles
- Installed for perpendicular alignment
- Drain connections are standard and are furnished with plug.
- Drain can be provided with product on request.
- Oversized Body Cylinder ensures minimal pressure drop
Technical specification
Build and limits
Taken from our published product data. Confirm against your line specification before ordering.
- Housing material
- Carbon steel, Stainless steel in various grades.
- Filter Element
- Carbon steel, Stainless steel in various grades,
- End connection
- Flanged (As per requested Table.), Threaded (NPT or BSPJ)
- Sizes
- Sizes are available from 1/2" Line size to 24" Line size. Other/ Higher sizes available on request
- Filtration rating
- Filtration rating available from 200 micron to 1000 microns
- Pressure rating
- Up to 600 PSI. High-pressure ratings available on request
- Working pressures and connections
- Available in 125 psi to 600 psi working pressures.with either Flanged by Flanged or Grooved by Flanged connections
- Applications
- Pump protection; Valve and regulator protection; Protection of heat exchanger and refrigerating set; Instrumentation and ancillary piping item protection
Independent testing
Tested by government laboratories
These reports cover our strainers. They were produced by outside laboratories, not by us.
CWPRS
0.0183
kg/cm² head loss at 493 m³/hr, clean
Pressure-drop test, gas-turbine plant duty
Certificate (PDF)Same family
Related products
Ask for a quote
Send your line size, flow rate, fluid and temperature. We will size it and send a price.
