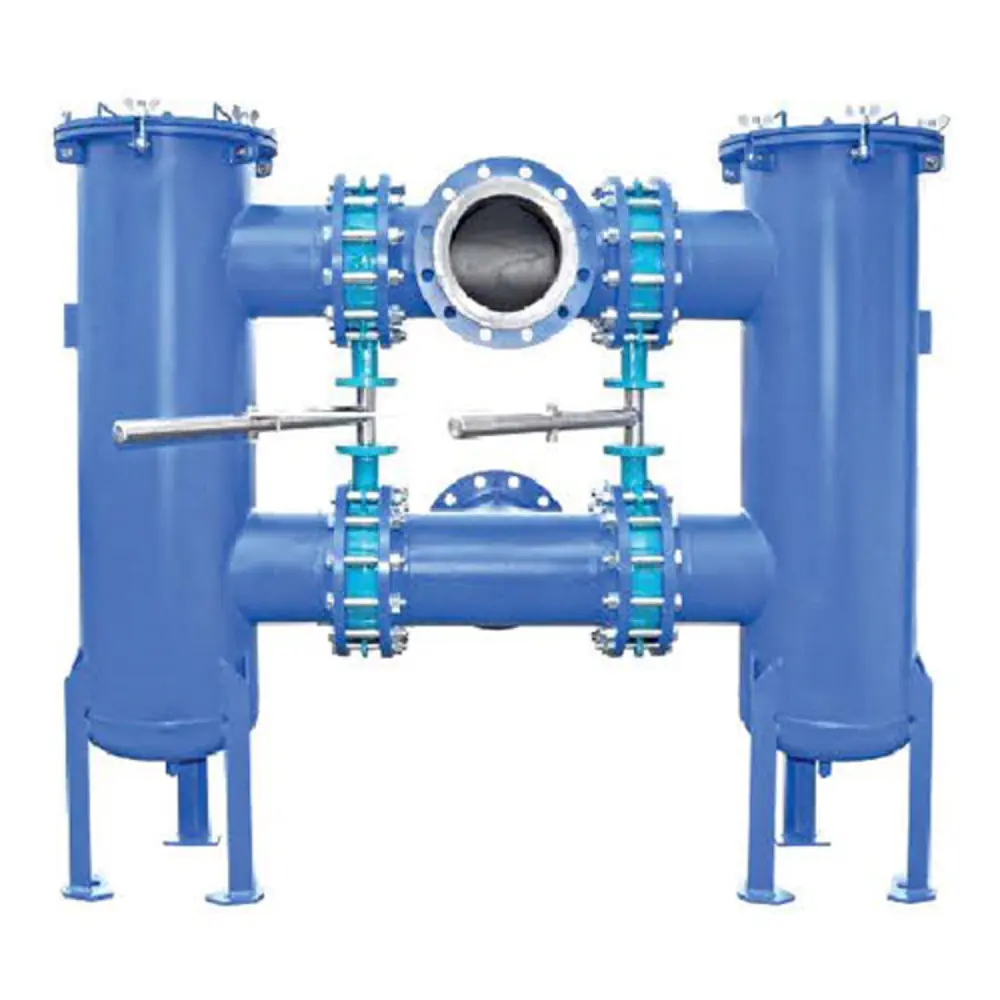

Certificate (PDF)Duplex strainers support continuous operation by diverting flow through another strainer when one becomes blocked, allowing the blocked strainer to be cleaned. Carbon steel and stainless steel bodies are available, with standard flanged off line connections and inline strainers on request.
Design features
- Can be installed in horizontal pipelines.
- Drain connections are standard and are furnished with plug.
- Perforated screen with 20 Mesh linings are standard.
- Vent valve can be provided with valve on request.
- Strainer with Sight Flow Indicator shall be done for hazardous applications like Hydrocarbon./ Acid.etc.,
- Tomeet high temperature and high pressure with suitable MOC and Sealing parts.
- Free straining are 4 times of pipe cross section are standard.
Loading model
Drag to orbit
Augmented reality
Stand it on your floor
Open this on a phone and tap the button. The part appears at true size in the room in front of you. Tap a label to read the parts. Nothing to install.
Loading the model
Move the phone slowly until the floor is found
This phone could not start augmented reality

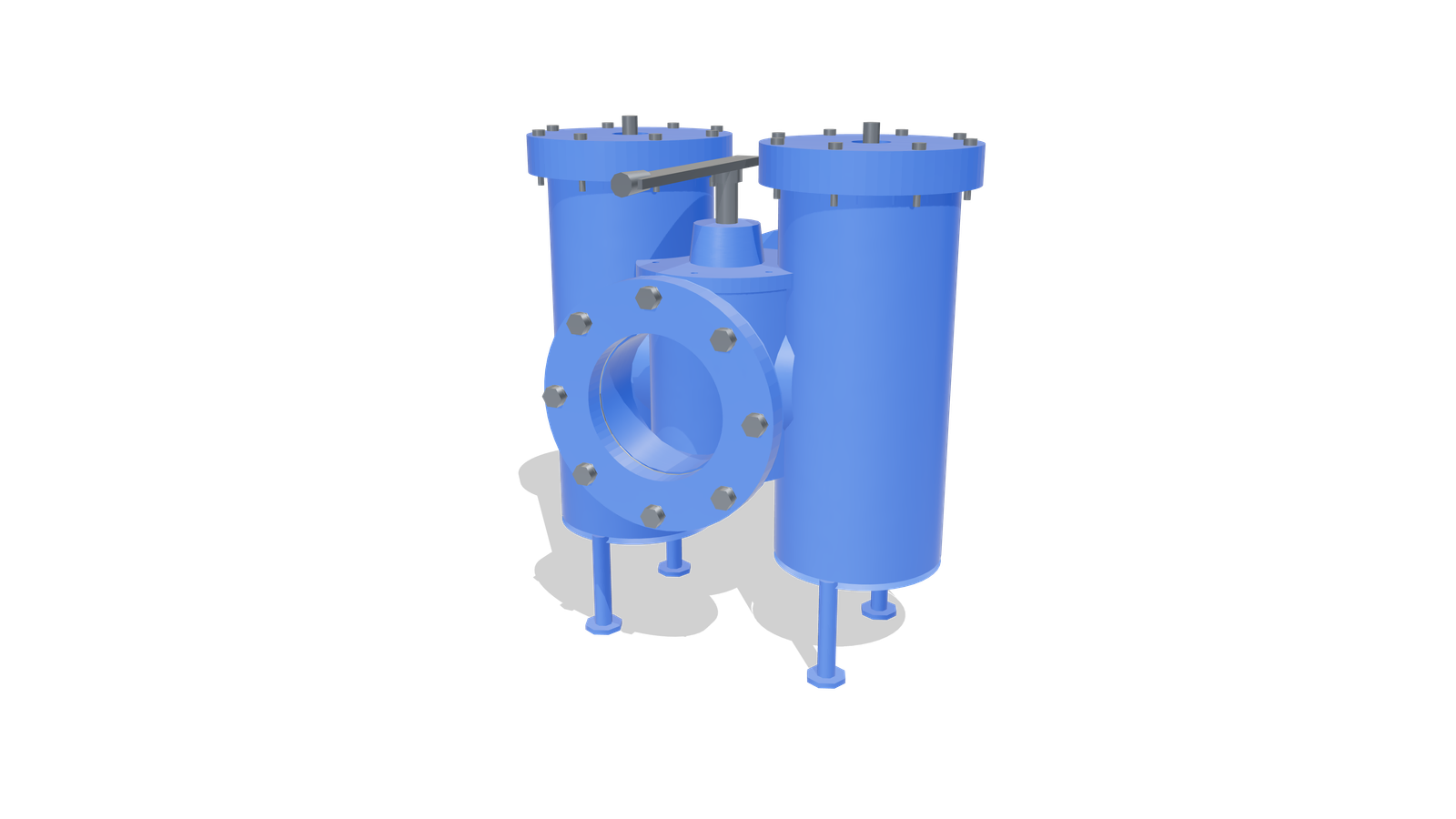

8 inch (200 NB) · Class 150
Tap a label on the model. The screen is inside the leg; turn on See inside to look at it.
- 1 Process in Process flow enters the inlet. 10 inch (250 NB), Class 150.
- 2 Solids held Perforated screen with 40 Mesh linings are standard.
- 3 Clean out Clean flow leaves the outlet. 10 inch (250 NB), Class 150.
- 4 Blow-off Drain connections are standard and are furnished with plug.

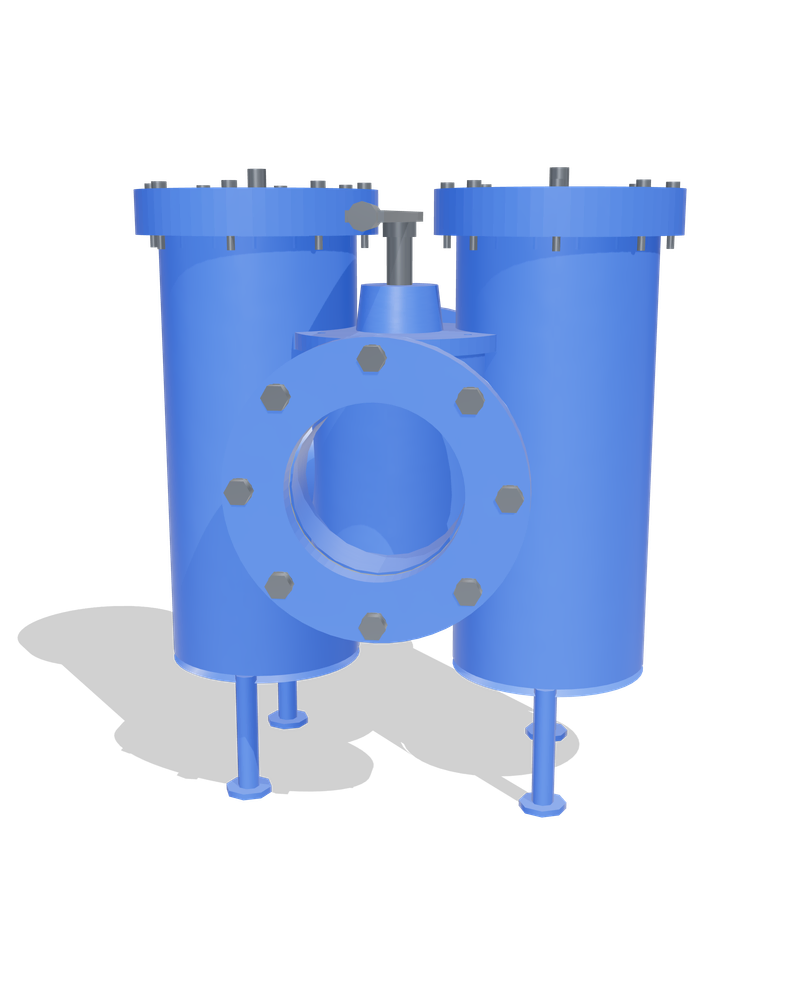

True size, 689 x 791 x 589 mm. Representative geometry, not a CAD drawing.
On iPhone, open this page in Safari for augmented reality. It does not work inside the LinkedIn or WhatsApp browser.
Technical specification
Build and limits
Taken from our published product data. Confirm against your line specification before ordering.
- Housing material
- Carbon steel, Stainless steel in various grades, - Other materials and coatings available on request
- Filter Element
- Carbon steel, Stainless steel in various grades - Other materials available on request.
- End connection
- Flanged (As per requested Table.), Threaded (NPT or BSP)
- Sizes
- Sizes are available from 1" Line size to24" Line size. Other sizes available on request
- Filtration rating
- Filtration rating available from 1 micron to 1000 microns
- Pressure rating
- Up to 1000 PSI. High-pressure ratings available on request
- Free straining area, description
- Free straining area is minimum 6 times pipe CS area.
- Applications
- Pump protection; Boiler Feed water filtrations; Valve and regulator protection; Protection of heat exchanger and refrigerating set; Instrumentation and ancillary piping item protection; Protection of steam traps
Independent testing
Tested by government laboratories
These reports cover our strainers. They were produced by outside laboratories, not by us.
CWPRS
0.0183
kg/cm² head loss at 493 m³/hr, clean
Pressure-drop test, gas-turbine plant duty
Certificate (PDF)Same family
