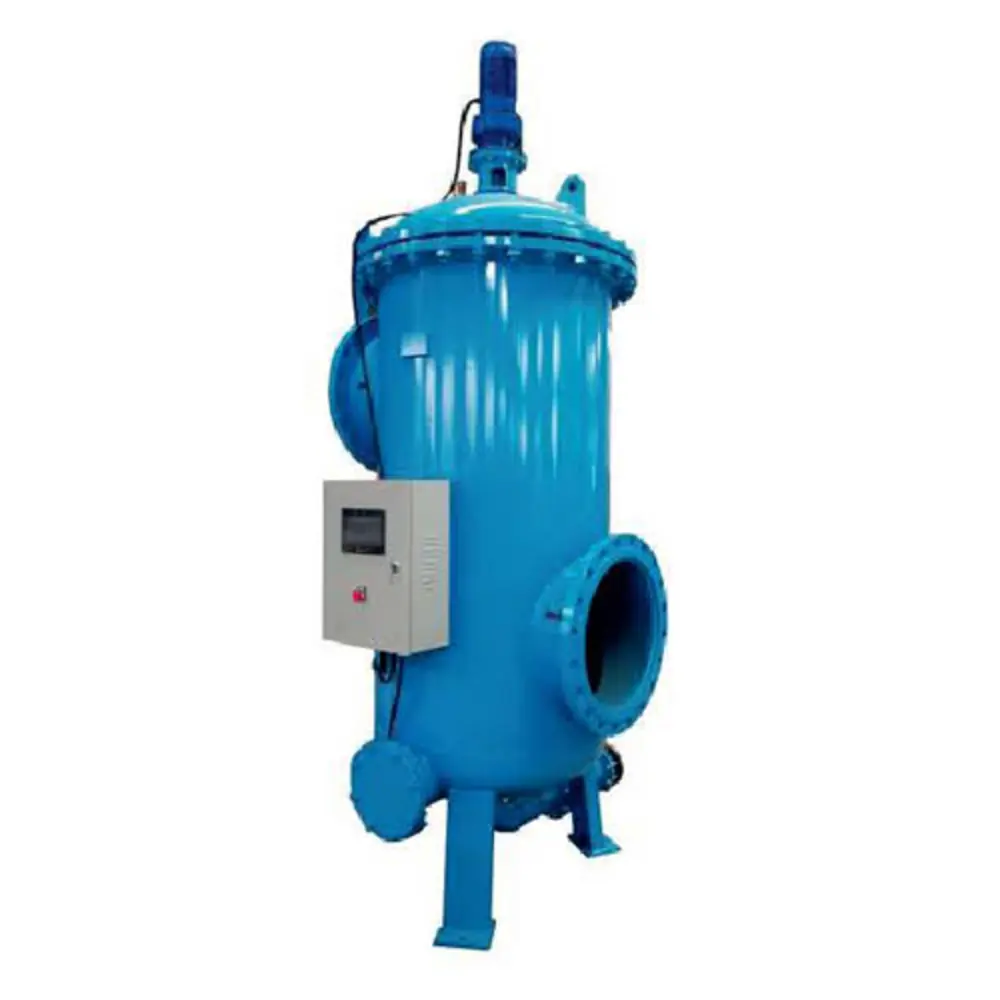

Self Cleaning Strainers

Removes Large Particle Impurities in Pipeline Systems

Self-cleaning strainers reduce product loss, require minimal operator intervention and improve flow consistency. The page describes fully automatic cleaning and semi automatic operation at consistently low differential pressure with a low initial investment.

Design features

No dynamic seals
Minimal purge for low waste operation
Easy in-line installation
Continuous 24/7 operation
Maintenance-friendly design makes low labor costs
Eco-friendly. No bags to purchase.change or landfill
Complete package with controls and blowdown valve.
Special Ashcroft differential pressure switch with diaphragm seals for isolation.
Separate control panel will be provided in requirement / big in size.
Low pressure situations like gravity flow from tanks.

Technical specification

Build and limits

Taken from our published product data. Confirm against your line specification before ordering.

Housing material: Carbon steel, Stainless steel in various grades.
Filter Element: Carbon steel.Stainless steel in various grades - Other materials available on request.
End connection: Available in Flanged (As per requested Table.),Butt Welded, Socket welded.
Sizes: Sizes are available from 3" Line size to 24" Line size. Other/ Higher sizes available on request
Filtration rating: Filtration rating available from 400 micron to 5000 microns
Pressure rating: Up to 1500 PSI. High-pressure ratings available on request
