NSTL
270 g
peak acceleration, half-sine, 3.3 ms
Naval shock qualification

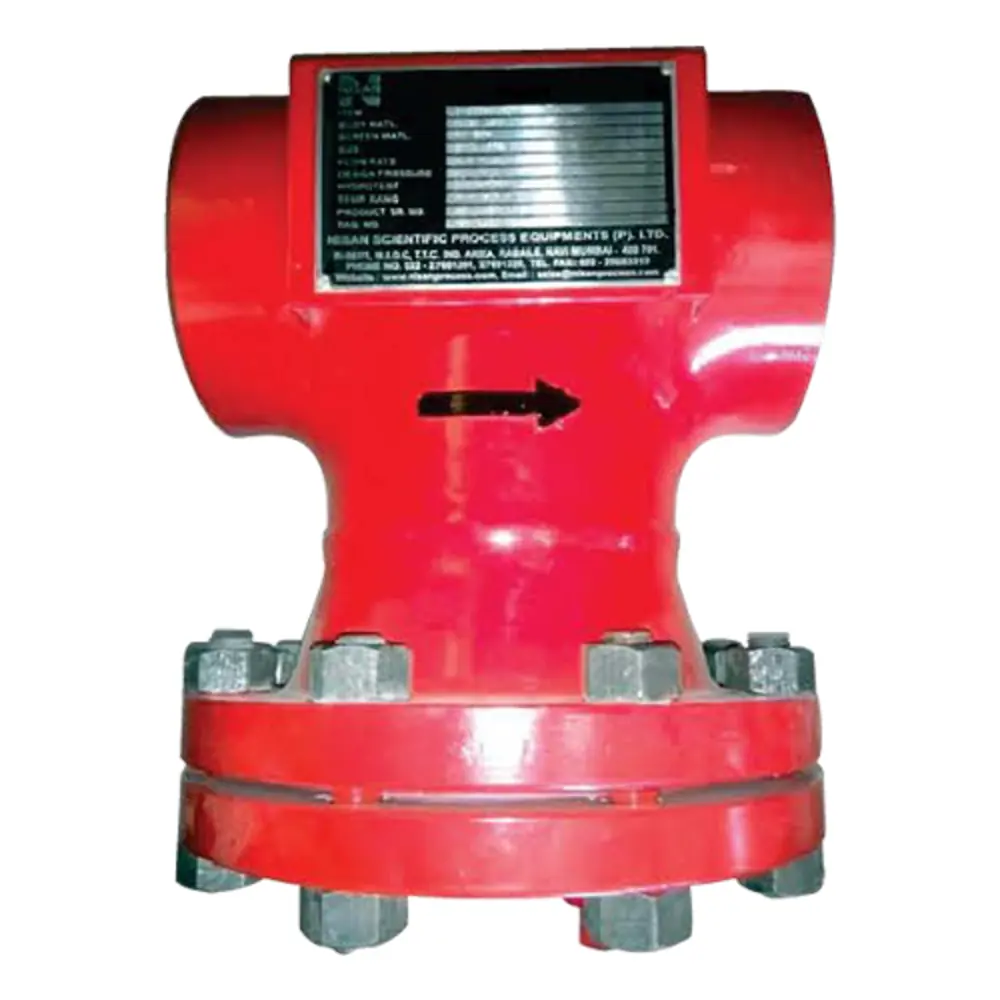

Certificate (PDF)Tee strainers suit horizontal or vertical downward-flow piping and use filter elements reinforced with rod stiffeners and spot-welded mesh. Different perforations, meshes and filter materials are available for specific media requirements.
Design features
- Carbon steal and Stainless Staal materials of construction available.
- Minimum pressure drop.
- Free straining area is more than 2.5 times the pipe croea section area.
- Differentials end drains optional.
- Casting and Fabrication Body shall be done
- Body of MOC shall be of Gun Matel,A216 WCB,CI, Carbon Stael.etc.
- Three type of TEE strainers shall be manufactured where standards shall be followed usually.other on request.
Loading model
Drag to orbit
Augmented reality
Stand it on your floor
Open this on a phone and tap the button. The part appears at true size in the room in front of you. Tap a label to read the parts. Nothing to install.
Loading the model
Move the phone slowly until the floor is found
This phone could not start augmented reality
8 inch (200 NB) · Class 150
Tap a label on the model. The screen is inside the leg; turn on See inside to look at it.
- 1 Process in Process flow enters the inlet. 10 inch (250 NB), Class 150.
- 2 Solids held Perforated screen with 40 Mesh linings are standard.
- 3 Clean out Clean flow leaves the outlet. 10 inch (250 NB), Class 150.
- 4 Blow-off Drain connections are standard and are furnished with plug.

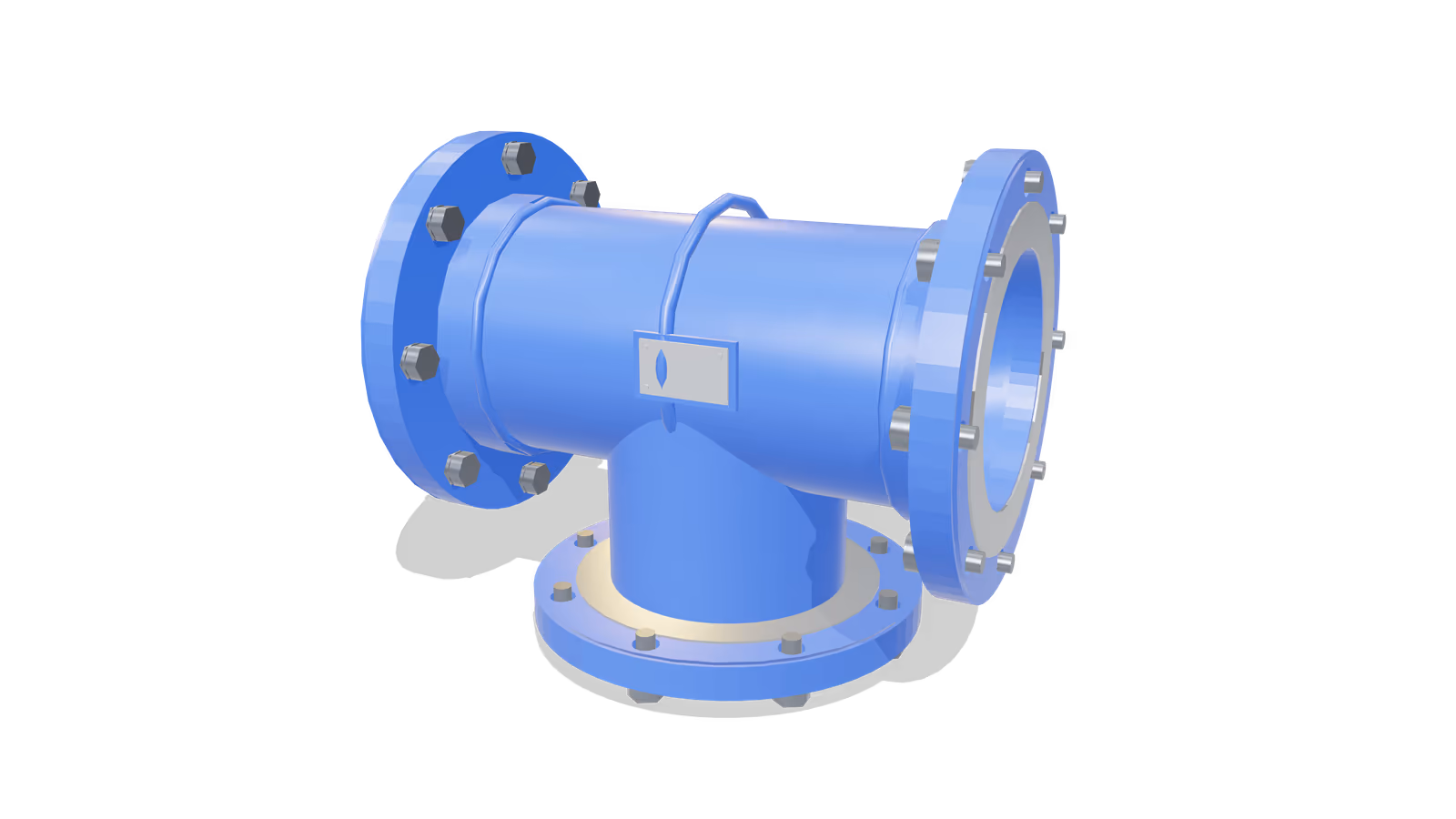

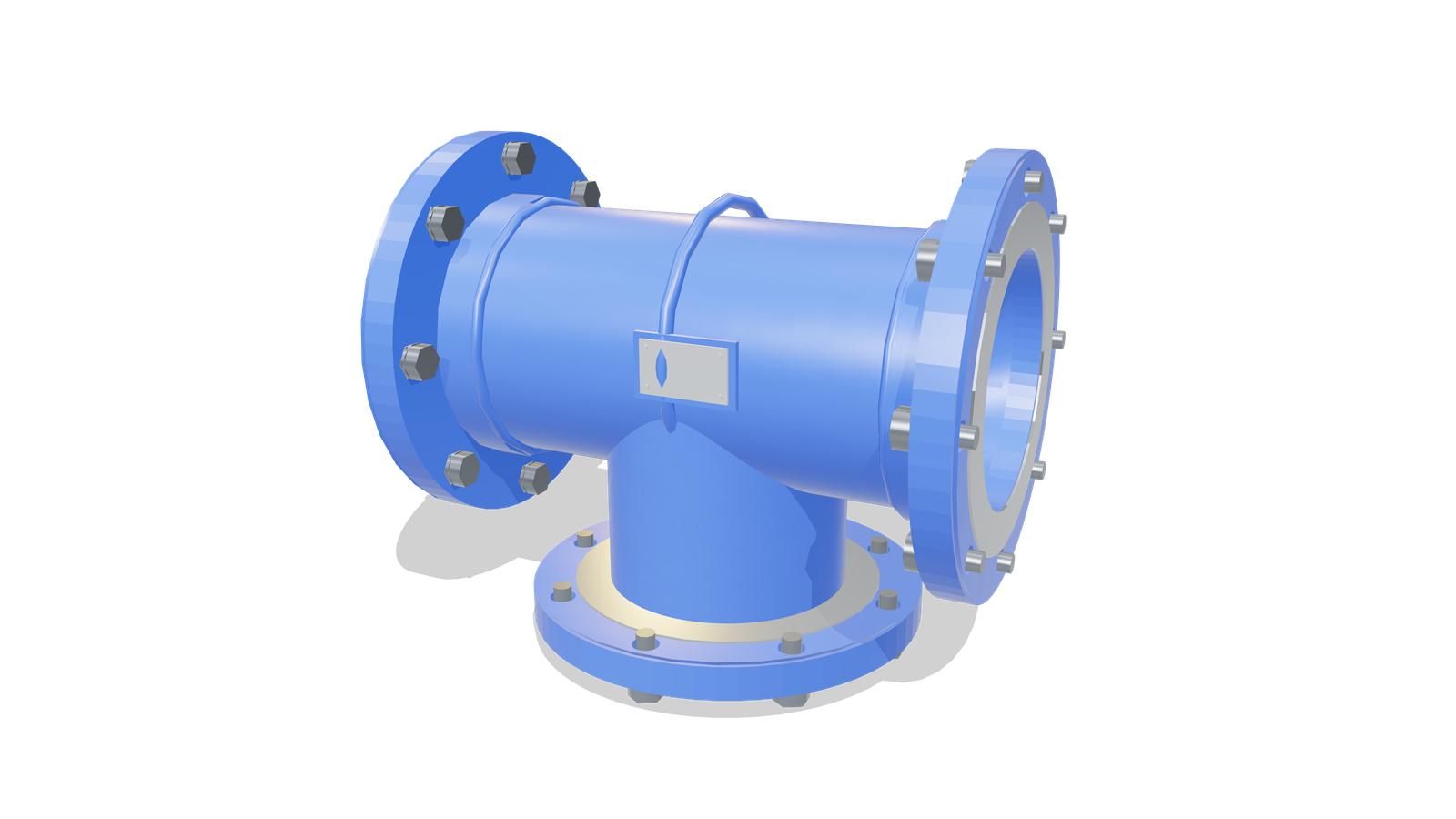

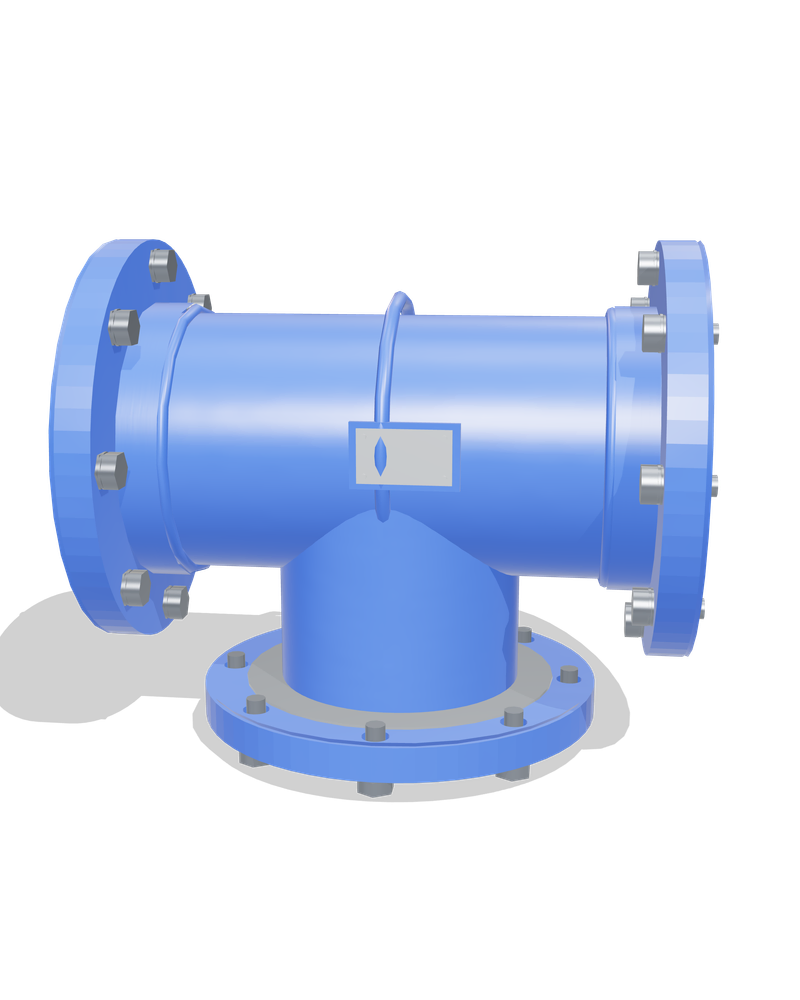

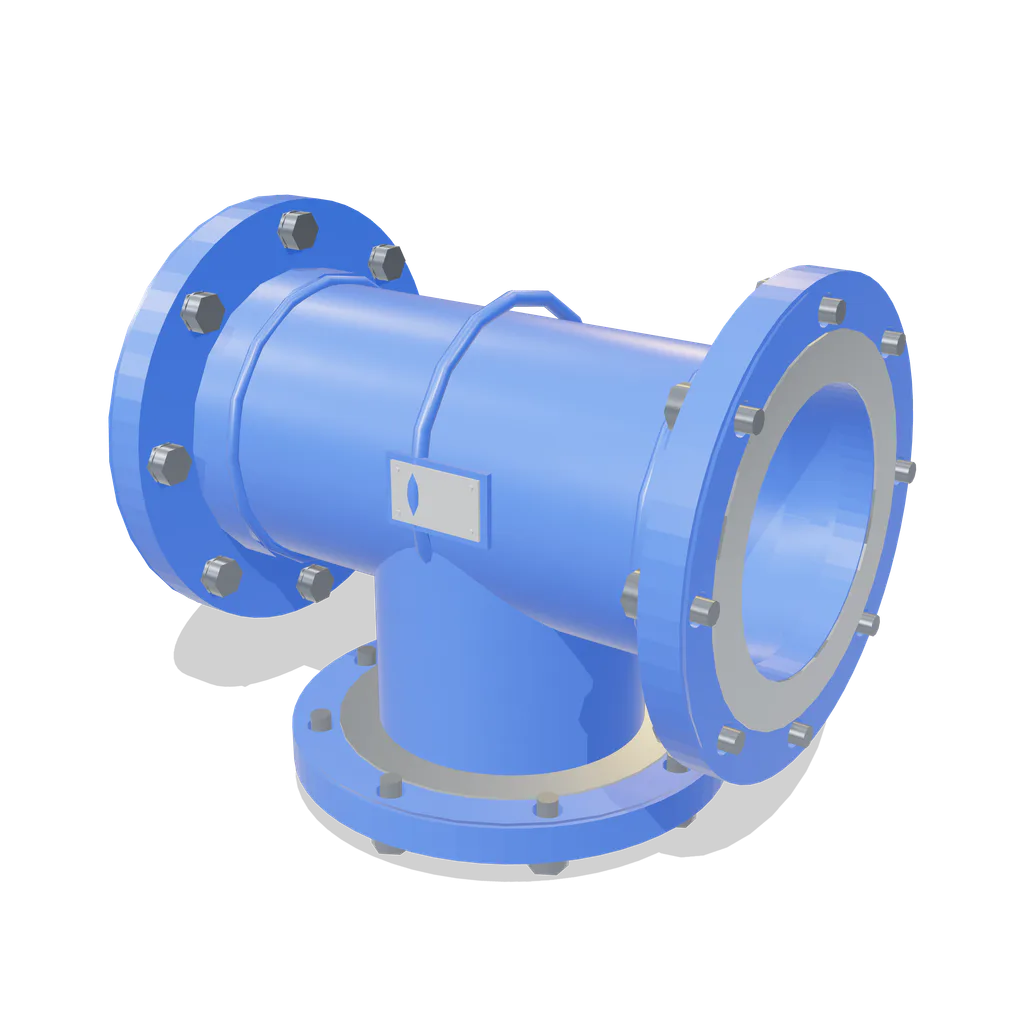

True size, 500 x 422 x 343 mm. Representative geometry, not a CAD drawing.
On iPhone, open this page in Safari for augmented reality. It does not work inside the LinkedIn or WhatsApp browser.
Technical specification
Build and limits
Taken from our published product data. Confirm against your line specification before ordering.
- Housing material
- Carbon steel, Stainless steel in various grades, - Other materials and coatings available on request
- Filter Element
- Carbon steel, Stainless steel in various grades - Other materials available on request.
- End connection
- Flanged (As per requested Table.), Threaded (NPT or BSP)
- Sizes
- Sizes are available from 1/2" Line size to 24" Line size. Other/Higher sizes available on request
- Filtration rating
- Filtration rating available from 1 micron to 1000 microns
- Pressure rating
- Up to 1000 PSI. High-pressure ratings available on request
- Free straining area, description
- Free straining area is minimum 6 times pipe CS area.
- Standard elements
- Standard elements are 40 mesh stainless steel welded.
- Pressure drop chart basis
- This pressure drop chart is based on the flow of clean water through 6 mesh (approx 1/8” hole size) perforations.
Where it is used
Applications
Chemical processingPetroleumPower generationMarineOil &GasIron & SteelHVACFood & BeveragePharmaceutical
Independent testing
Tested by government laboratories
These reports cover our strainers. They were produced by outside laboratories, not by us.
CWPRS
0.0183
kg/cm² head loss at 493 m³/hr, clean
Pressure-drop test, gas-turbine plant duty
Certificate (PDF)Same family
