NSTL
270 g
peak acceleration, half-sine, 3.3 ms
Naval shock qualification

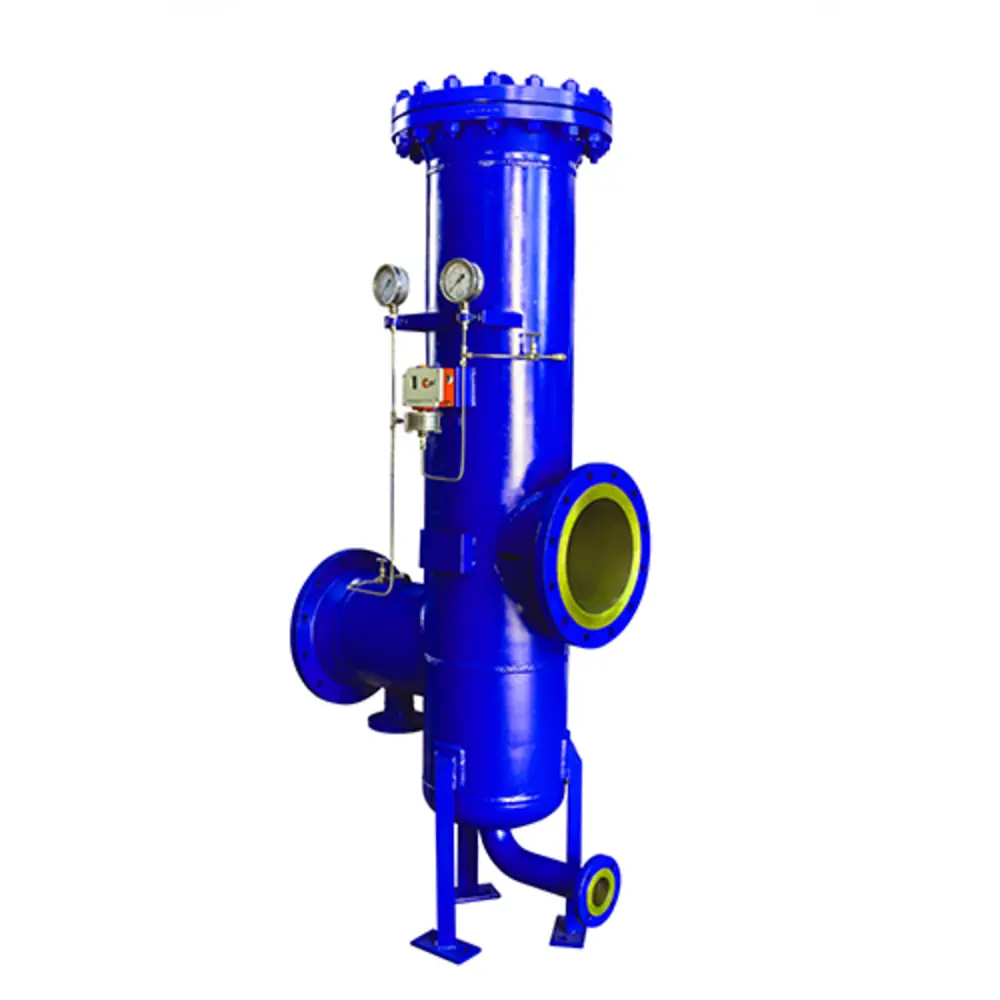

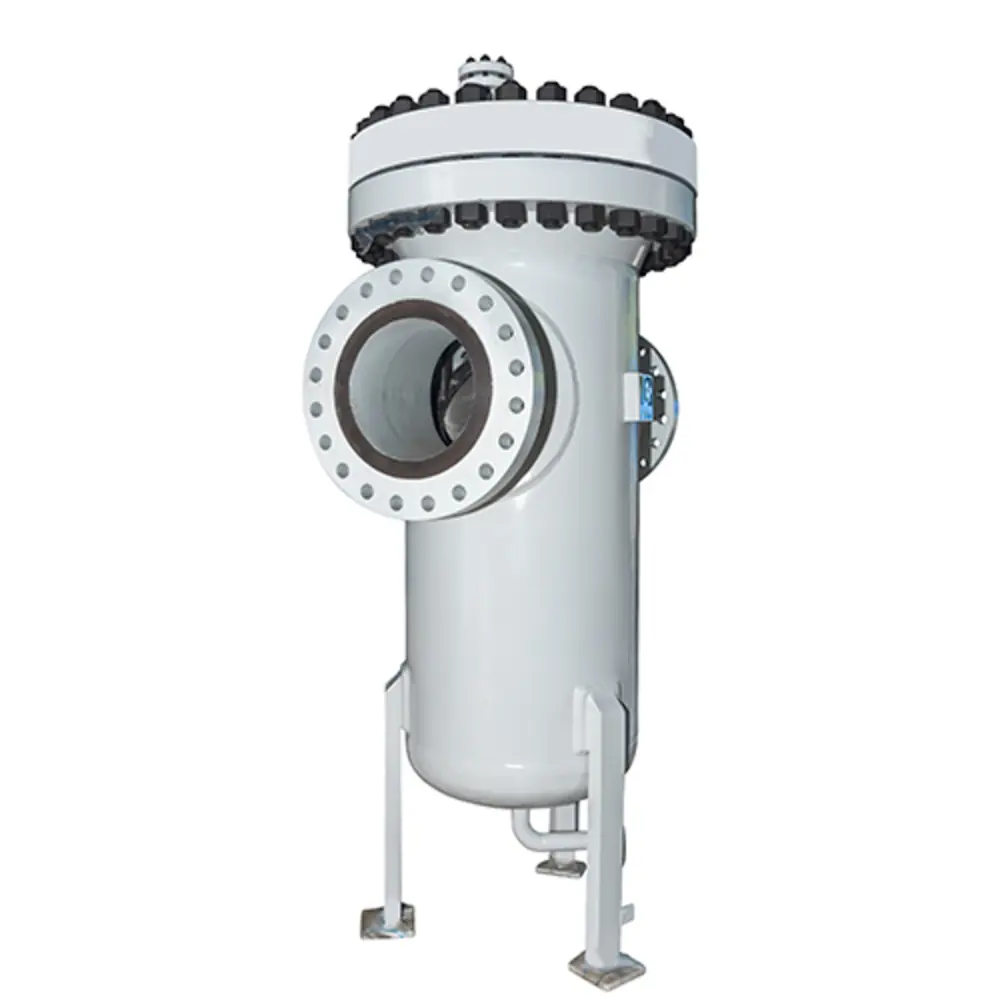

Certificate (PDF)Basket Type Strainers are usually installed in a vertical cylinder and capture foreign particles in a basket that can be cleaned after valve changeover without shutting down the plant. They can offer more straining surface area than plate strainers, improving flow rates or reducing pressure loss.
Design features
- Available with RF and FF flange.
- Custom fabrication can be done for very high pressure.
- Can be installed in horizontal or vertical pipelines.
- Drain connections are standard and are furnished with plug.
- Perforated screen with 40 Mesh linings are standard.
- Other linings shall be done on request.
- Drain can be provided with valve on request.
- To meet cryogenic application with suitable MOC
- To meet high temperature with suit.able gasket and MOC.
- Free straining are 4 times of pipe cross section are standard.
Loading model
Drag to orbit
Augmented reality
Stand it on your floor
Open this on a phone and tap the button. The part appears at true size in the room in front of you. Tap a label to read the parts. Nothing to install.
Loading the model
Move the phone slowly until the floor is found
This phone could not start augmented reality

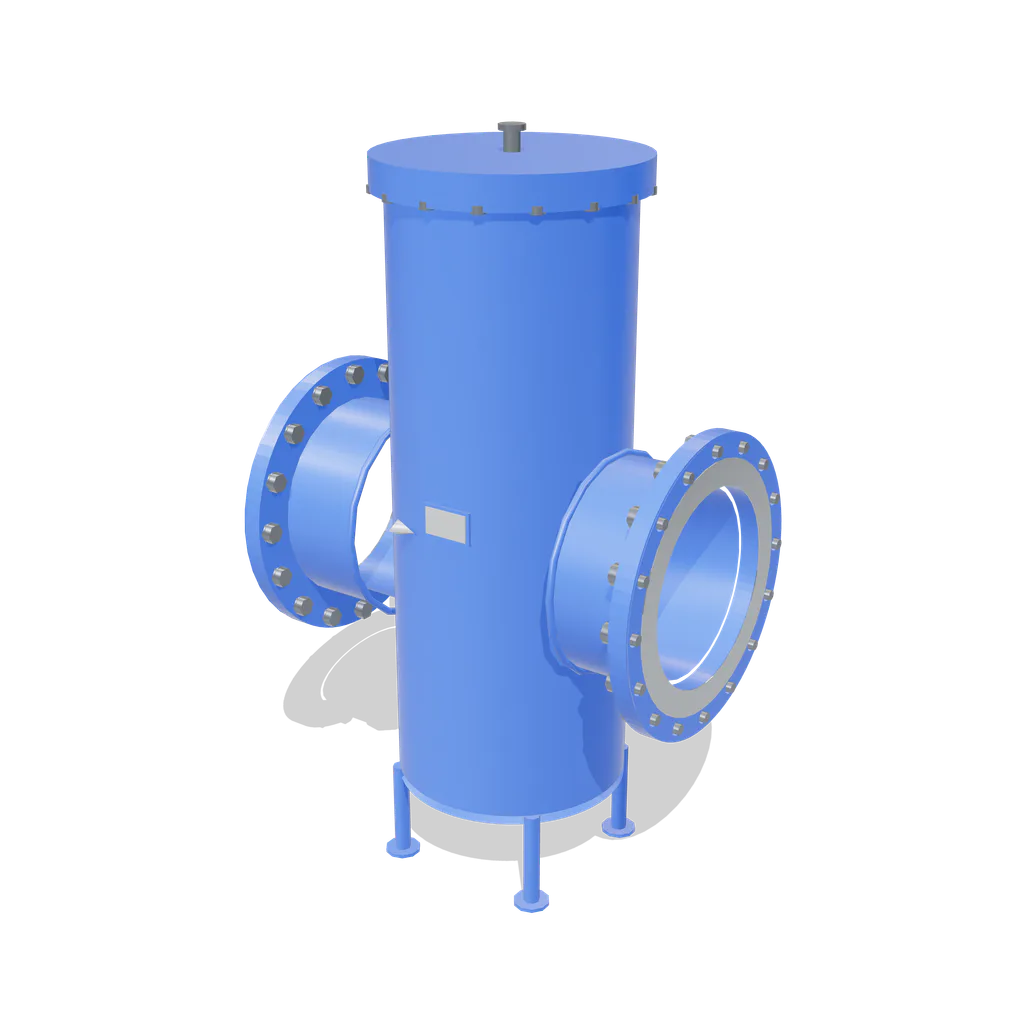

18 inch (450 NB) · Class 150
Tap a label on the model. The screen is inside the leg; turn on See inside to look at it.
- 1 Process in Process flow enters the inlet. 10 inch (250 NB), Class 150.
- 2 Solids held Perforated screen with 40 Mesh linings are standard.
- 3 Clean out Clean flow leaves the outlet. 10 inch (250 NB), Class 150.
- 4 Blow-off Drain connections are standard and are furnished with plug.
True size, 986 x 1634 x 635 mm. Representative geometry, not a CAD drawing.
On iPhone, open this page in Safari for augmented reality. It does not work inside the LinkedIn or WhatsApp browser.
Technical specification
Build and limits
Taken from our published product data. Confirm against your line specification before ordering.
- Housing material
- Carbon steel, Stainless steel in various grades, Other materials and coatings available on request
- Filter Element
- Carbon steel, Stainless steel in various grades, Other materials available on request.
- Filter element grades, description
- S.S. 304/316/304L/316L
- End connection
- Flanged (As per requested Table.), Threaded (NPT or BSP)
- Operating pressure
- 0.6-1.6 MPa
- Sizes
- Sizes are available from 1/2″ Line size to 24″ Line size. Other/Higher sizes available on request
- Filtration rating
- Filtration rating available from 1 micron to 1000 microns
- Pressure rating
- Up to 1 000 PSI. High-pressure ratings available on request
- Construction
- From Seamless Pipes Conforms to ANSI B36.10M. ANSI B36.19M, Dished End-ANSI B16.9, with Forged or Bar Stock Fittings with Socket Weld connection as per ANSI B16.11 or Screwed Connection as per ANSI B1.20.1 and Flat Cap from Plates.
- Applications
- Pump protection; Flow meter protection; Protection of steam traps; Valve and regulator protection; Protection of heat exchanger and refrigerating set; Instrumentation and ancillary piping item protection
Independent testing
Tested by government laboratories
These reports cover our strainers. They were produced by outside laboratories, not by us.
CWPRS
0.0183
kg/cm² head loss at 493 m³/hr, clean
Pressure-drop test, gas-turbine plant duty
Certificate (PDF)Same family
