NSTL
270 g
peak acceleration, half-sine, 3.3 ms
Naval shock qualification

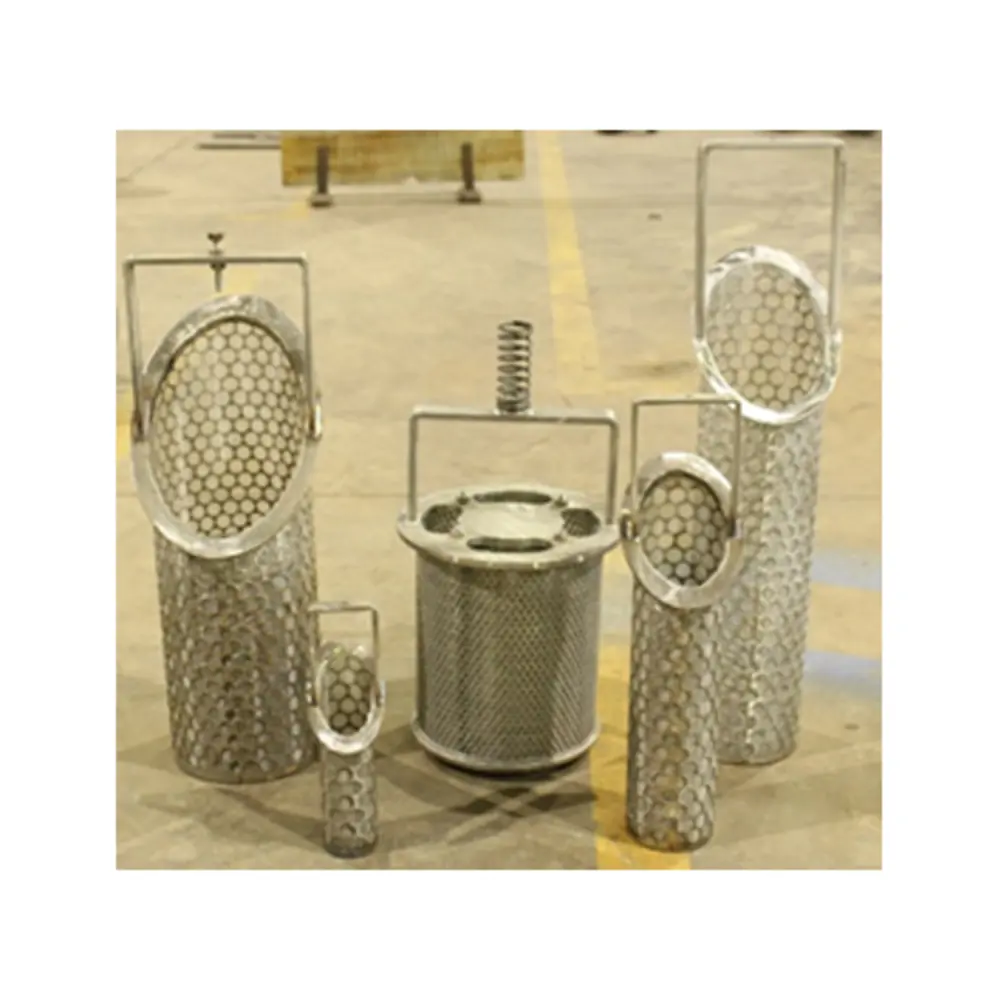

Certificate (PDF)NISAN designs and manufactures filter elements for all types of industrial strainers, including customized and highly nonstandard filters for high pressure, high temperature, high flow and low pressure drop requirements. It offers screens and baskets made using several filter media or combinations of them.
Design features
- The range of materials and size of units is unlimited.
- modify filter elements based on the customer's requirements
- manufacture highly nonstandard filters based on high pressure, high temperature, high flow and low pressure drop needs
Technical specification
Build and limits
Taken from our published product data. Confirm against your line specification before ordering.

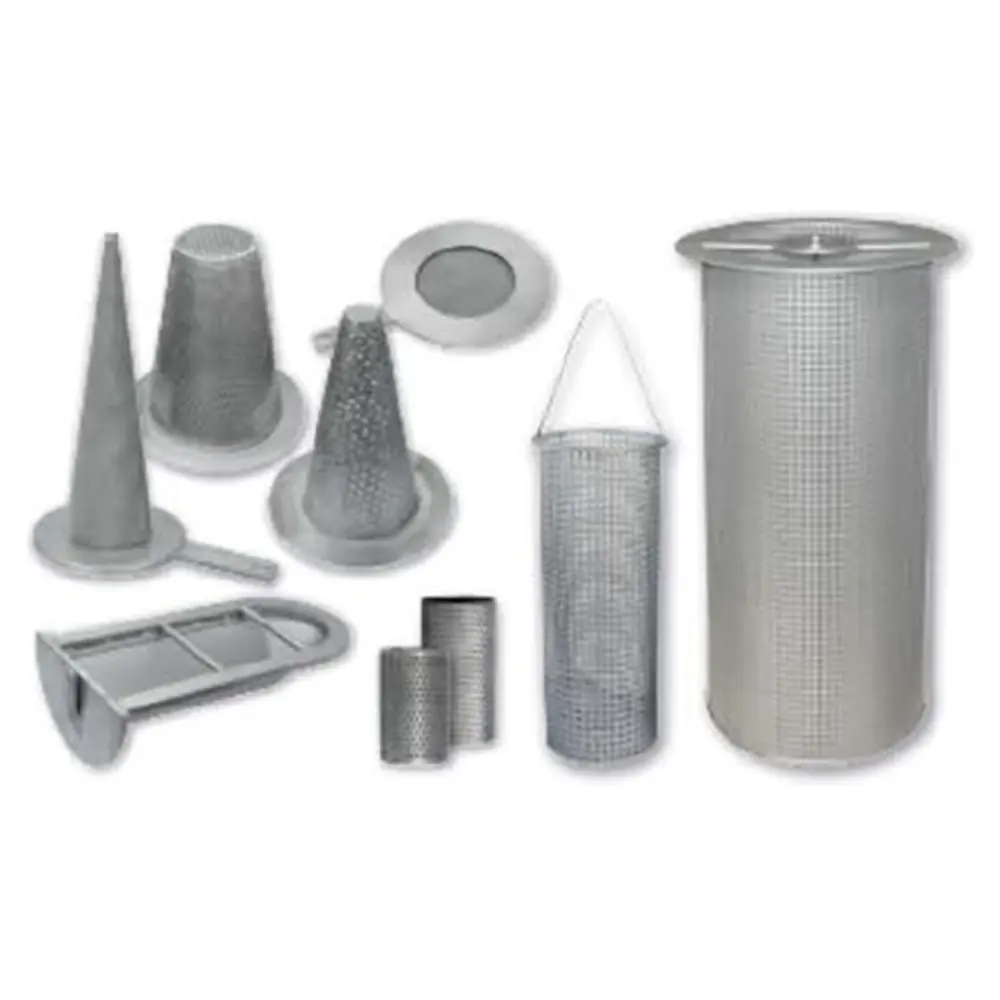

- Filter media and forms
- Perforated Plate; Wire Mesh or Wire mesh With Perforated Plate combination; Wedge Wire; Sintered metal; Fiber Cartridge; Replacement Bag Filters
Independent testing
Tested by government laboratories
These reports cover our strainers. They were produced by outside laboratories, not by us.
CWPRS
0.0183
kg/cm² head loss at 493 m³/hr, clean
Pressure-drop test, gas-turbine plant duty
Certificate (PDF)Same family
Related products
Ask for a quote
Send your line size, flow rate, fluid and temperature. We will size it and send a price.
