Float and Board Level Gauge

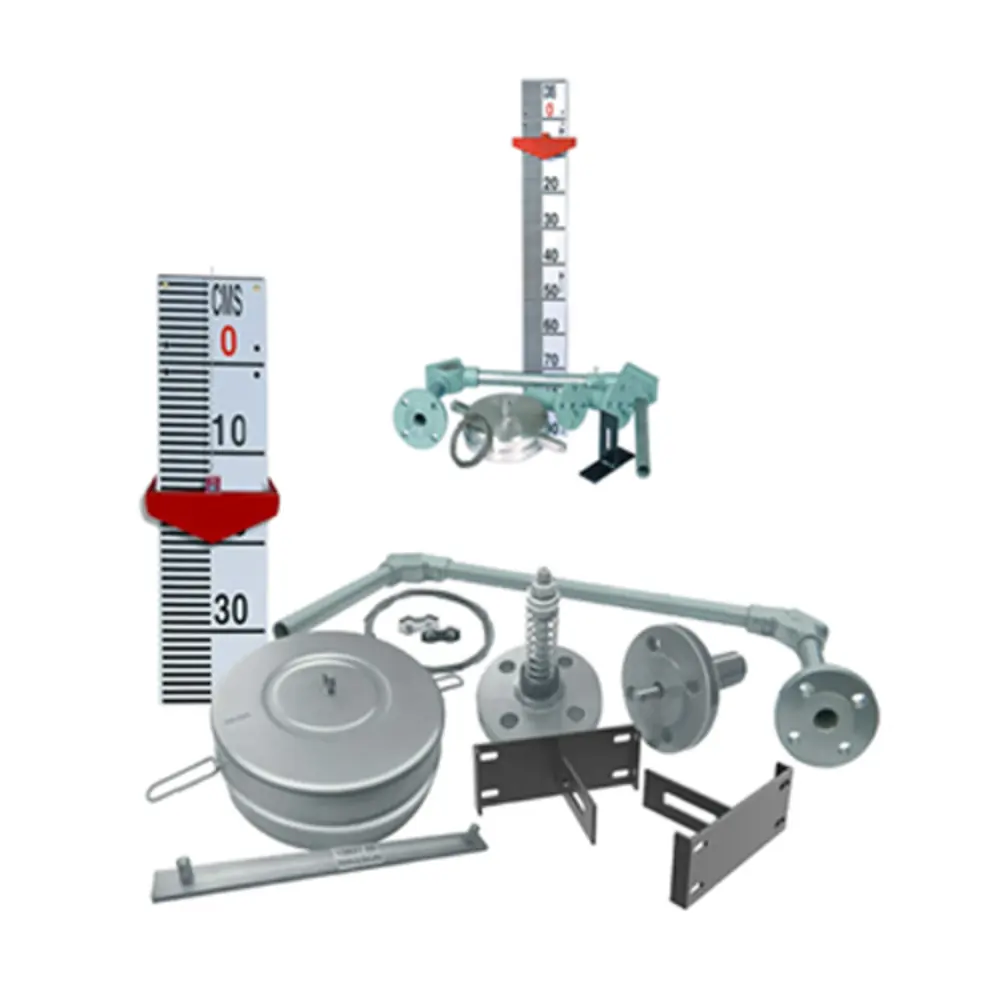

The Float & Board Type Tank Level gauge measures levels in large non-pressurized liquid storage tanks or vessels using a buoyant float connected by rope and pulleys to a pointer on a marked board. A vapour seal version uses a magnetized counterweight and follower capsule for tanks with corrosive fumes or vapours or N2 [Nitrogen] purging.
Design features
- the float is design as per the specific gravity of the liquid
- This float connected to a pointer through Rope via a Sets of Pulleys, the pointer slides over a CM marked Board, Installed Parallel to the tank.
- when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
- NISAN also offers vapour Seal Type float & Board type level Gauge
Technical specification
Build and limits
Taken from our published product data. Confirm against your line specification before ordering.
- Tank applications
- large non, pressurized liquid storage tanks / vessels
- Other tank applications
- cone roof, float roof, floating roof, under grand tanks
- Fluid specific gravity
- more than 0.6(Free Flow)
- Float materials
- S.S.304 / S.S.316/P.P./Teflon
- Board markings
- CM marked Board
- Guide wires
- For more than 5 metre height of the tank we provide two guide wires firmly anchored to the tank bottom.
- Vapour seal applications
- tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks
