NISAN offers pipe spools, piping skids, stainless steel process tanks and vessels, rotor storage containers, column pipes, heat exchangers, cooling coils and custom fabrication. The page describes customer-specific design and fabrication, including replacement heat exchangers and industrial coils.
Design features
- IBS Spools with IBR certificates
- We handle every aspect of the manufacturing process from initial design to final fabrication

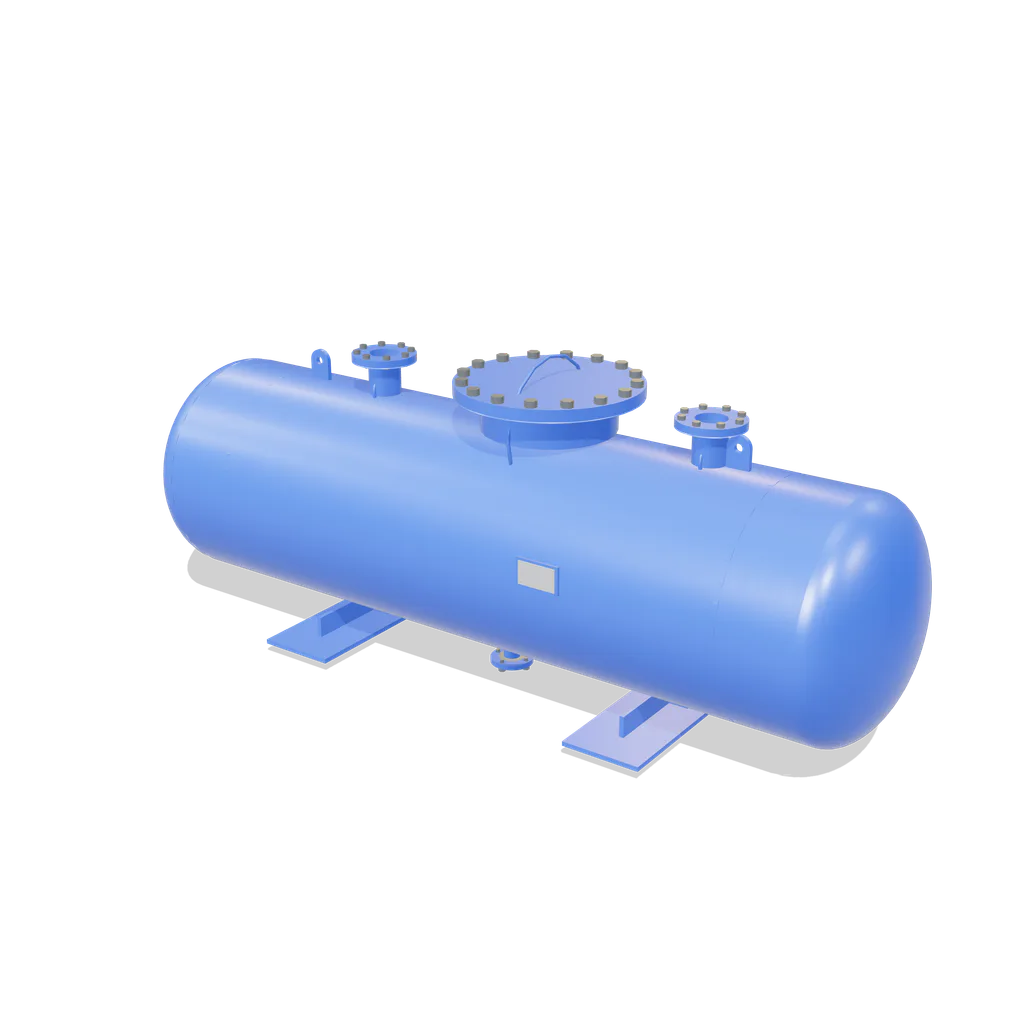

- Stainless steel pressure vessels are manufactured vertically or horizontally in the capacity chosen by the customer
- These nitrogen purge rotor storage containers provide corrosion resistance for the rotor, shaft, turbine disk for long-term storage and extended shelf life.
- Our heat exchangers can be designed according to the customer's requirements or manufactured according to drawings supplied by the customer.
- One-to-one replacements of heat exchangers can also be done with a site visit and physical measurements.
- Our industrial heating and cooling coils are custom-made to meet customer's needs.
Loading model
Augmented reality
Stand it on your floor
Open this on a phone and tap the button. The part appears at true size in the room in front of you. Tap a label to read the parts. Nothing to install.
Loading the model
Tap a label on the model. The screen is inside the leg; turn on See inside to look at it.
- 1 Process in Process flow enters the inlet. 10 inch (250 NB), Class 150.
- 2 Solids held Perforated screen with 40 Mesh linings are standard.
- 3 Clean out Clean flow leaves the outlet. 10 inch (250 NB), Class 150.
- 4 Blow-off Drain connections are standard and are furnished with plug.
True size, 2900 x 1161 x 860 mm. Representative geometry, not a CAD drawing.
On iPhone, open this page in Safari for augmented reality. It does not work inside the LinkedIn or WhatsApp browser.
Technical specification
Build and limits
Taken from our published product data. Confirm against your line specification before ordering.
- Spool standards
- IBR, ASTM, ASME, and ANSI & Other International Standards, Specifications.
- Tank and vessel standard
- American ASME BPVC VIII Div.1
- Pressure vessel orientation
- vertically or horizontally
- Tank materials
- AISI 304 or AISI 316L, Duplex stainless steel
- Tank surface treatment
- etched and passivated
- Rotor container orientation
- vertically and horizontally
- Column pipe materials
- AISI 304 or AISI 316L stainless steel, Duplex stainless steel
- Column pipe length
- up to 3 meters
- Column pipe precision
- 30-micron
- Heat exchanger type
- compact shell and tube heat exchanger
- Heat exchanger application
- general purpose oil coolers
- Custom fabrication design standards
- ASME BPVC Section VIII Division 1 / Division 2, IBR, EN 13445, PD 5500 and GOST s
Where it is used
Applications
Same family
Related products
Ask for a quote
Send your line size, flow rate, fluid and temperature. We will size it and send a price.
